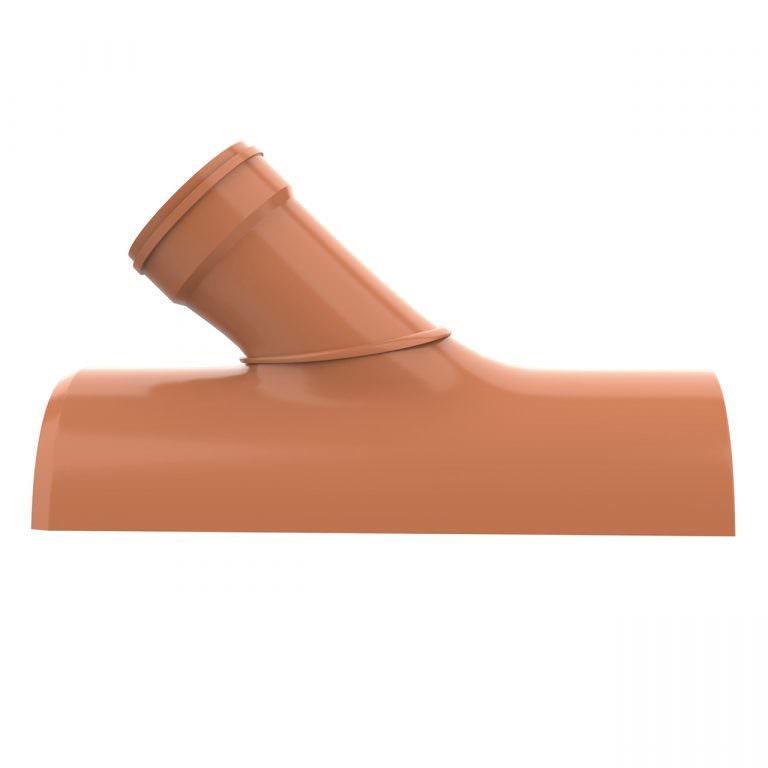

Derivazione a Morsa 45° in PVC

Raccordo formato da tubo PVC rigido per fognature e scarichi interrati non in pressione conformi alla norma UNI EN 1401.

RICHIEDI INFORMAZIONi

Scheda Tecnica

FINO 400

FINO 630

FINO 710

FINO 800

FINO 900

FINO 1000

FINO 1200

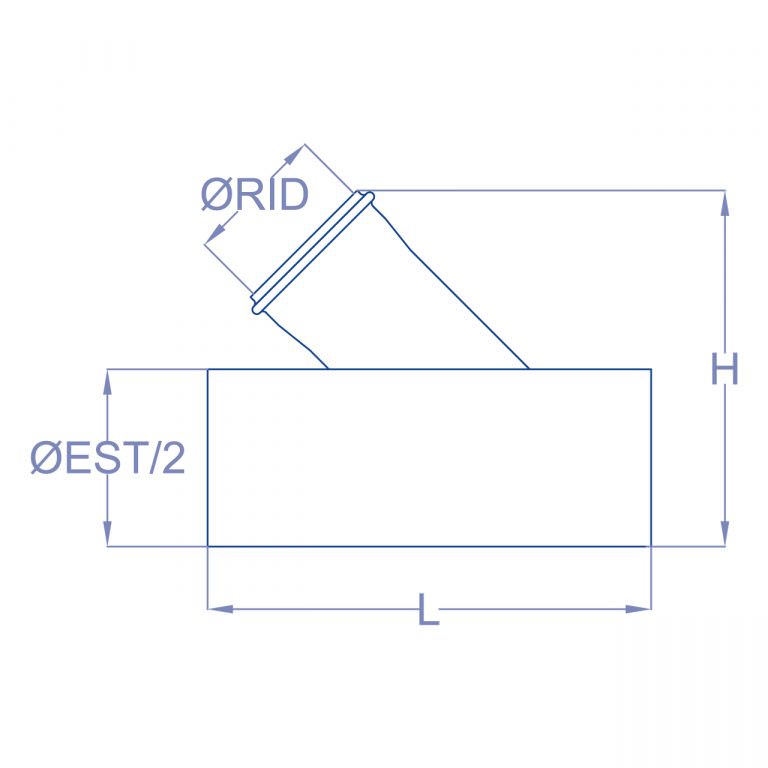

CODICE ARTICOLOØ EST (mm)Ø RID (mm)L (mm)H (mm)
PVDM4250250110465270
PVDM4251250125488270
PVDM4252250160540320
PVDM4253250200600350
PVDM4315315110465410
PVDM4316315125488410
PVDM4317315160540410
PVDM4318315200600410
PVDM4319315250675410
PVDM4400400110465450
PVDM4401400125488450
PVDM4402400160540450
PVDM4403400200600450
PVDM4404400250675450
PVDM4405400315773450

CODICE ARTICOLO	Ø EST (mm)	Ø RID (mm)	L (mm)	H (mm)
PVDM4250	250	110	465	270
PVDM4251	250	125	488	270
PVDM4252	250	160	540	320
PVDM4253	250	200	600	350
PVDM4315	315	110	465	410
PVDM4316	315	125	488	410
PVDM4317	315	160	540	410
PVDM4318	315	200	600	410
PVDM4319	315	250	675	410
PVDM4400	400	110	465	450
PVDM4401	400	125	488	450
PVDM4402	400	160	540	450
PVDM4403	400	200	600	450
PVDM4404	400	250	675	450
PVDM4405	400	315	773	450

SCARICA SCHEDA TECNICA

CODICE ARTICOLOØ EST (mm)Ø RID (mm)L (mm)H (mm)
PVDM4500500110465410
PVDM4501500125488410
PVDM4502500160540410
PVDM4503500200600450
PVDM4504500250675500
PVDM4505500315773550
PVDM4506500400900600
PVDM4630630110465550
PVDM4631630125488550
PVDM4632630160540550
PVDM4633630200600580
PVDM4634630250675650
PVDM4635630315773650
PVDM4636630400900700
PVDM46376305001050720

CODICE ARTICOLO	Ø EST (mm)	Ø RID (mm)	L (mm)	H (mm)
PVDM4500	500	110	465	410
PVDM4501	500	125	488	410
PVDM4502	500	160	540	410
PVDM4503	500	200	600	450
PVDM4504	500	250	675	500
PVDM4505	500	315	773	550
PVDM4506	500	400	900	600
PVDM4630	630	110	465	550
PVDM4631	630	125	488	550
PVDM4632	630	160	540	550
PVDM4633	630	200	600	580
PVDM4634	630	250	675	650
PVDM4635	630	315	773	650
PVDM4636	630	400	900	700
PVDM4637	630	500	1050	720

SCARICA SCHEDA TECNICA

CODICE ARTICOLOØ EST (mm)Ø RID (mm)L (mm)H (mm)
PVDM4710710110465550
PVDM4711710125488550
PVDM4712710160540550
PVDM4713710200600550
PVDM4714710250675600
PVDM4715710315773600
PVDM4716710400900700
PVDM47177105001050700
PVDM47187106301245750

CODICE ARTICOLO	Ø EST (mm)	Ø RID (mm)	L (mm)	H (mm)
PVDM4710	710	110	465	550
PVDM4711	710	125	488	550
PVDM4712	710	160	540	550
PVDM4713	710	200	600	550
PVDM4714	710	250	675	600
PVDM4715	710	315	773	600
PVDM4716	710	400	900	700
PVDM4717	710	500	1050	700
PVDM4718	710	630	1245	750

SCARICA SCHEDA TECNICA

CODICE ARTICOLOØ EST (mm)Ø RID (mm)L (mm)H (mm)
PVDM4800800110465600
PVDM4801800125488600
PVDM4802800160540650
PVDM4803800200600650
PVDM4804800250675750
PVDM4805800315773750
PVDM4806800400900750
PVDM48078005001050770
PVDM48088006301245800
PVDM48098007101365800

CODICE ARTICOLO	Ø EST (mm)	Ø RID (mm)	L (mm)	H (mm)
PVDM4800	800	110	465	600
PVDM4801	800	125	488	600
PVDM4802	800	160	540	650
PVDM4803	800	200	600	650
PVDM4804	800	250	675	750
PVDM4805	800	315	773	750
PVDM4806	800	400	900	750
PVDM4807	800	500	1050	770
PVDM4808	800	630	1245	800
PVDM4809	800	710	1365	800

SCARICA SCHEDA TECNICA

CODICE ARTICOLOØ EST (mm)Ø RID (mm)L mm)H (mm)
PVDM4900900110465700
PVDM4901900125488700
PVDM4902900160540700
PVDM4903900200600720
PVDM4904900250675750
PVDM4905900315773800
PVDM4906900400900850
PVDM49079005001050850
PVDM49089006301245870
PVDM49099007101365900
PVDM49109008001500900

CODICE ARTICOLO	Ø EST (mm)	Ø RID (mm)	L mm)	H (mm)
PVDM4900	900	110	465	700
PVDM4901	900	125	488	700
PVDM4902	900	160	540	700
PVDM4903	900	200	600	720
PVDM4904	900	250	675	750
PVDM4905	900	315	773	800
PVDM4906	900	400	900	850
PVDM4907	900	500	1050	850
PVDM4908	900	630	1245	870
PVDM4909	900	710	1365	900
PVDM4910	900	800	1500	900

SCARICA SCHEDA TECNICA

CODICE ARTICOLOØ EST (mm)Ø RID (mm)L (mm)H (mm)
PVDM49111000110465730
PVDM49121000125488730
PVDM49131000160540730
PVDM49141000200600750
PVDM49151000250675770
PVDM49161000315773800
PVDM49171000400900820
PVDM491810005001050850
PVDM491910006301245900
PVDM492010007101365900
PVDM492110008001500950
PVDM492210009001650950

CODICE ARTICOLO	Ø EST (mm)	Ø RID (mm)	L (mm)	H (mm)
PVDM4911	1000	110	465	730
PVDM4912	1000	125	488	730
PVDM4913	1000	160	540	730
PVDM4914	1000	200	600	750
PVDM4915	1000	250	675	770
PVDM4916	1000	315	773	800
PVDM4917	1000	400	900	820
PVDM4918	1000	500	1050	850
PVDM4919	1000	630	1245	900
PVDM4920	1000	710	1365	900
PVDM4921	1000	800	1500	950
PVDM4922	1000	900	1650	950

SCARICA SCHEDA TECNICA

CODICE ARTICOLOØ EST (mm)Ø RID (mm)L (mm)H (mm)
PVDM49231200110465800
PVDM49241200125488800
PVDM49251200160540800
PVDM49261200200600800
PVDM49271200250675850
PVDM49281200315773850
PVDM49291200400900900
PVDM493012005001050900
PVDM493112006301245950
PVDM493212007101365950
PVDM493312008001500950
PVDM4934120090016501000
PVDM49351200100018001000

CODICE ARTICOLO	Ø EST (mm)	Ø RID (mm)	L (mm)	H (mm)
PVDM4923	1200	110	465	800
PVDM4924	1200	125	488	800
PVDM4925	1200	160	540	800
PVDM4926	1200	200	600	800
PVDM4927	1200	250	675	850
PVDM4928	1200	315	773	850
PVDM4929	1200	400	900	900
PVDM4930	1200	500	1050	900
PVDM4931	1200	630	1245	950
PVDM4932	1200	710	1365	950
PVDM4933	1200	800	1500	950
PVDM4934	1200	900	1650	1000
PVDM4935	1200	1000	1800	1000
